Product details

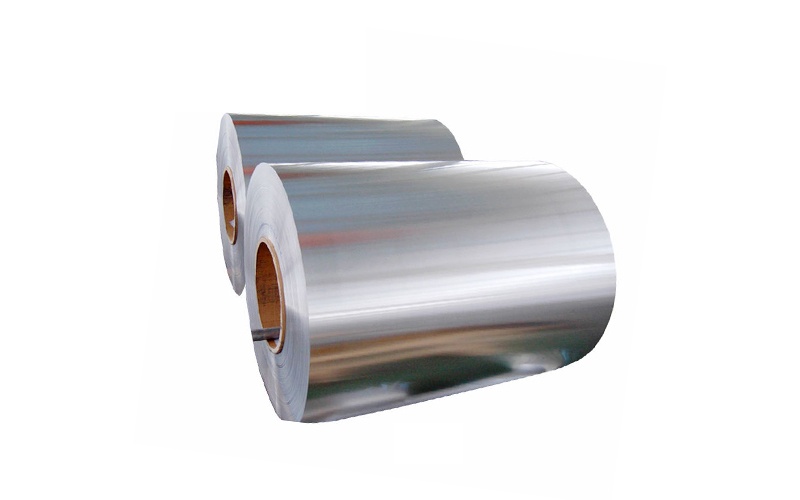

6061 aluminum coil is a kind of aluminum alloy material, which has good corrosion resistance and weldability, and is widely used in various fields.

The strength of 6061 aluminum coil is high, and higher strength can be obtained after heat treatment, while still maintaining good plasticity and toughness. Its corrosion resistance is also relatively good, can be used in harsh environments for a long time. In addition, the 6061 aluminum coil also has good weldable properties, which is convenient for processing and manufacturing.

Due to these excellent properties, 6061 aluminum coils are widely used in various fields, such as mobile phone shell materials, automobile wheels, pull rod boxes, 3C products, etc. At the same time, it is also often used in the manufacture of various industrial structural parts requiring a certain strength and high antimicrobial corrosion. In the field of rail vehicles, 6061 aluminum coils are used to manufacture interior and exterior panels, floors, compartment panels and other parts.

Product production process

An aluminium alloy is an alloy in which aluminium (Al) is the predominant metal. The typical alloying elements are copper, magnesium, manganese, silicon, tin, nickel and zinc. There are two principal classifications, namely casting alloys and wrought alloys, both of which are further subdivided into the categories heat-treatable and non-heat-treatable. About 85% of aluminium is used for wrought products, for example rolled plate, foils and extrusions. Cast aluminium alloys yield cost-effective products due to the low melting point, although they generally have lower tensile strengths than wrought alloys. The most important cast aluminium alloy system is Al–Si, where the high levels of silicon (4–13%) contribute to give good casting characteristics. Aluminium alloys are widely used in engineering structures and components where light weight or corrosion resistance is required.

Alloys composed mostly of aluminium have been very important in aerospace manufacturing since the introduction of metal-skinned aircraft. Aluminium–magnesium alloys are both lighter than other aluminium alloys and much less flammable than other alloys that contain a very high percentage of magnesium.

Aluminium alloy surfaces will develop a white, protective layer of aluminium oxide if left unprotected by anodizing and/or correct painting procedures. In a wet environment, galvanic corrosion can occur when an aluminium alloy is placed in electrical contact with other metals with more positive corrosion potentials than aluminium, and an electrolyte is present that allows ion exchange. Also referred to as dissimilar-metal corrosion, this process can occur as exfoliation or as intergranular corrosion. Aluminium alloys can be improperly heat treated, causing internal element separation which corrodes the metal from the inside out.

Aluminium alloy compositions are registered with The Aluminum Association. Many organizations publish more specific standards for the manufacture of aluminium alloy, including the Society of Automotive Engineers standards organization, specifically its aerospace standards subgroups, and ASTM International.

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	V	Ti	Bi	Ga	Pb	Zr	Limits††		Al
														Each	Total
1050[47]	0.25	0.4	0.05	0.05	0.05			0.05						0.03		99.5 min
1060	0.25	0.35	0.05	0.028	0.03	0.03	0.05	0.05	0.028	0.03	0.03	0.03	0.03	0.028		99.6 min
1100	0.95 Si+Fe		0.05–0.20	0.05			0.1							0.05	0.15	99.0 min
1199[47]	0.006	0.006	0.006	0.002	0.006		0.006	0.005	0.002		0.005			0.002		99.99 min
2014	0.50–1.2	0.7	3.9–5.0	0.40–1.2	0.20–0.8	0.1	0.25		0.15					0.05	0.15	remainder
2024	0.5	0.5	3.8–4.9	0.30–0.9	1.2–1.8	0.1	0.25		0.15					0.05	0.15	remainder
2219	0.2	0.3	5.8–6.8	0.20–0.40	0.02		0.1	0.05–0.15	0.02–0.10				0.10–0.25	0.05	0.15	remainder
3003	0.6	0.7	0.05–0.20	1.0–1.5			0.1							0.05	0.15	remainder
3004	0.3	0.7	0.25	1.0–1.5	0.8–1.3		0.25							0.05	0.15	remainder
3102	0.4	0.7	0.1	0.05–0.40			0.3		0.1					0.05	0.15	remainder
4043	4.5–6.0	0.8	0.3	0.05	0.05		0.1		0.2					0.05	0.15	remainder
5005	0.3	0.7	0.2	0.2	0.5–1.1	0.1	0.25							0.05	0.15	remainder
5052	0.25	0.4	0.1	0.1	2.2–2.8	0.15–0.35	0.1							0.05	0.15	remainder
5083	0.4	0.4	0.1	0.40–1.0	4.0–4.9	0.05–0.25	0.25		0.15					0.05	0.15	remainder
5086	0.4	0.5	0.1	0.20–0.7	3.5–4.5	0.05–0.25	0.25		0.15					0.05	0.15	remainder
5154	0.25	0.4	0.1	0.1	3.10–3.90	0.15–0.35	0.2		0.2					0.05	0.15	remainder
5356	0.25	0.4	0.1	0.1	4.50–5.50	0.05–0.20	0.1		0.06–0.20					0.05	0.15	remainder
5454	0.25	0.4	0.1	0.50–1.0	2.4–3.0	0.05–0.20	0.25		0.2					0.05	0.15	remainder
5456	0.25	0.4	0.1	0.50–1.0	4.7–5.5	0.05–0.20	0.25		0.2					0.05	0.15	remainder
5754	0.4	0.4	0.1	0.5	2.6–3.6	0.3	0.2		0.15					0.05	0.15	remainder
6005	0.6–0.9	0.35	0.1	0.1	0.40–0.6	0.1	0.1		0.1					0.05	0.15	remainder
6005A†	0.50–0.9	0.35	0.3	0.5	0.40–0.7	0.3	0.2		0.1					0.05	0.15	remainder
6060	0.30–0.6	0.10–0.30	0.1	0.1	0.35–0.6	0.05	0.15		0.1					0.05	0.15	remainder
6061	0.40–0.8	0.7	0.15–0.40	0.15	0.8–1.2	0.04–0.35	0.25		0.15					0.05	0.15	remainder
6063	0.20–0.6	0.35	0.1	0.1	0.45–0.9	0.1	0.1		0.1					0.05	0.15	remainder
6066	0.9–1.8	0.5	0.7–1.2	0.6–1.1	0.8–1.4	0.4	0.25		0.2					0.05	0.15	remainder
6070	1.0–1.7	0.5	0.15–0.40	0.40–1.0	0.50–1.2	0.1	0.25		0.15					0.05	0.15	remainder
6082	0.7–1.3	0.5	0.1	0.40–1.0	0.60–1.2	0.25	0.2		0.1					0.05	0.15	remainder
6105	0.6–1.0	0.35	0.1	0.1	0.45–0.8	0.1	0.1		0.1					0.05	0.15	remainder
6162	0.40–0.8	0.5	0.2	0.1	0.7–1.1	0.1	0.25		0.1					0.05	0.15	remainder
6262	0.40–0.8	0.7	0.15–0.40	0.15	0.8–1.2	0.04–0.14	0.25		0.15	0.40–0.7		0.40–0.7		0.05	0.15	remainder
6351	0.7–1.3	0.5	0.1	0.40–0.8	0.40–0.8		0.2		0.2					0.05	0.15	remainder
6463	0.20–0.6	0.15	0.2	0.05	0.45–0.9		0.05							0.05	0.15	remainder
7005	0.35	0.4	0.1	0.20–0.70	1.0–1.8	0.06–0.20	4.0–5.0		0.01–0.06				0.08–0.20	0.05	0.15	remainder
7022	0.5	0.5	0.50–1.00	0.10–0.40	2.60–3.70	0.10–0.30	4.30–5.20		0.2					0.05	0.15	remainder
7068	0.12	0.15	1.60–2.40	0.1	2.20–3.00	0.05	7.30–8.30		0.01				0.05–0.15	0.05	0.15	remainder
7072	0.7 Si+Fe		0.1	0.1	0.1		0.8–1.3							0.05	0.15	remainder
7075	0.4	0.5	1.2–2.0	0.3	2.1–2.9	0.18–0.28	5.1–6.1		0.2					0.05	0.15	remainder
7079	0.3	0.4	0.40–0.80	0.10–0.30	2.9–3.7	0.10–0.25	3.8–4.8		0.1					0.05	0.15	remainder
7116	0.15	0.3	0.50–1.1	0.05	0.8–1.4		4.2–5.2	0.05	0.05		0.03			0.05	0.15	remainder
7129	0.15	0.3	0.50–0.9	0.1	1.3–2.0	0.1	4.2–5.2	0.05	0.05		0.03			0.05	0.15	remainder
7178	0.4	0.5	1.6–2.4	0.3	2.4–3.1	0.18–0.28	6.3–7.3		0.2					0.05	0.15	remainder
8176[46]	0.03–0.15	0.40–1.0					0.1				0.03			0.05	0.15	remainder
Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	V	Ti	Bi	Ga	Pb	Zr	Limits††		Al
														Each	Total
†Manganese plus chromium must be between 0.12 and 0.50%.
††This limit applies to all elements for which no other limit is specified on a given row, because no column exists or because the column is blank.

JIMI STEEL MILL CO.,LTD, (“JIMI Steel” for short) is an international company integrating production, processing and sales. Always stand from the customer's perspective and provide customers with one-stop steel procurement services. Headquartered in Dezhou the company has successively invested and built production lines of galvanized steel, color coating steel, seamless steel pipe, cold-rolled sheet and stainless steel products in China; Meanwhile, it has established long-term and friendly relations with Baosteel, Tisco, Posco and other major domestic and international steel mills to conveniently and efficiently provide customers with high-quality products and services. In addition, the company has also set up its own warehouses in major domestic ports to ensure that the goods are delivered to customers at the first time. As long as you need steel, JIMI Steel will give you the best support!

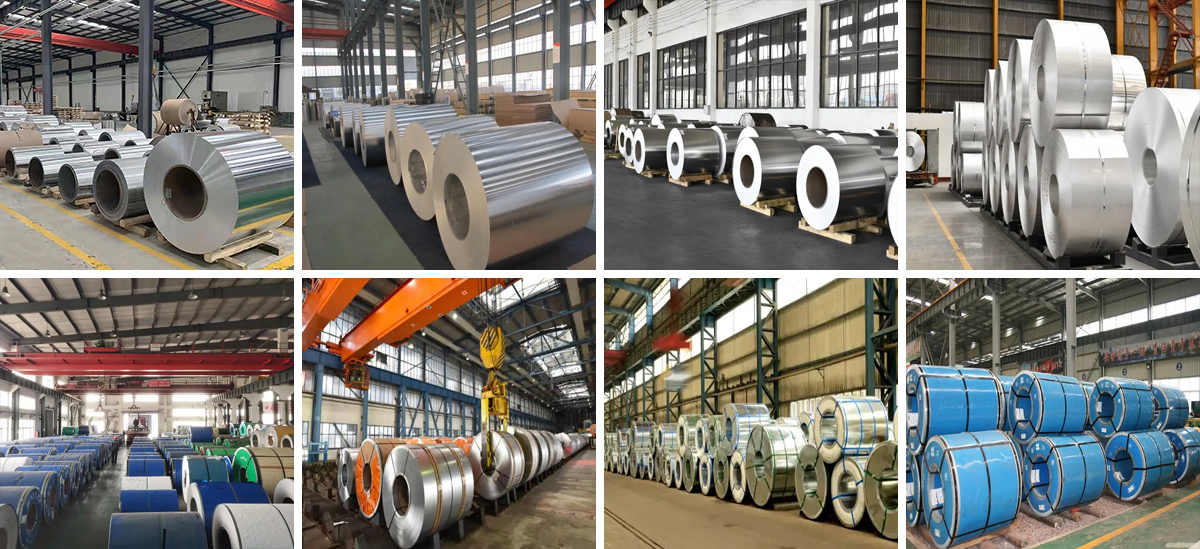

Manufacturing capacity
